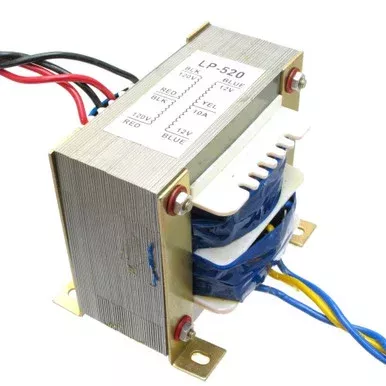

24 VCT Transformer 10 Amp, 240 Watt – 120/220 VAC
Input: 110/220VAC 60Hz
Primary Connections 120 VAC
Connect the 2 black wires together and connect the 2 red wires together and apply power to each pair.
Primary Connections 220 VAC
Connect the inner black & red wires together and apply power to the outer black & red wires
Secondary Connections: Blue Wires: 24 VAC, Center-tap: Yellow
Rated Current: 10 amps output.
Chassis mount transformer with 6 inch wire leads for connections.
Dimensions: (L) 3-3/4″ x (W) 2-7/8″ x (H) 3-3/8″
Okura
LP-520
LP520
MPJA
27846 TR
