Product Overview

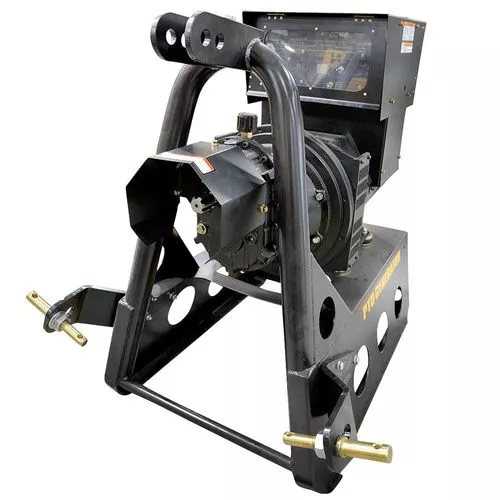

Use this PTO driven generator when you need a power source in remote areas of your farm. Built to run, this generator comes with a 1-3/8 in. 6-spline PTO shaft and a 3 point hitch frame to attach to your tractor. The generator requires 40 HP or more and 540 RPM and higher. It also has a total harmonic distortion of less than five percent.
Specification
- 24,000W PTO Driven Generator
- Model number: 24KW-PTOG
- Total harmonic distortion is less then 5%
- 3-Point hitch frame included
- Single-phase
- Rated Watt: 24,000
- Max Watt: 25,000
- Power factor: 1.0
- Rated AC Volts: 120/240
- Rated Load Current: 200/100 amps
- Rated Frequency: 60 Hz
- Power needed: 40 HP or more
- PTO Drive Speed: 540 RPM
- PTO Shaft: 1-3/8″ spline, 6-spline (included)
- Gearbox Reduction: single-stageRatio PTO Shaft to Revolving Field Speed: 1 to 3.33
- Recommended Gearbox Oil: SAE 90 gear lube oil
- PTO Shaft Lubricant: lithium base grease
- Length: 44 inches
- Width: 29.5 inches
- Height: 43.3 inches
- Weight: 677 pounds
- Digital meter readout
