Features
- Excellent magnetic core enameled wire, high temperature resistance
- High voltage resistance, low loss, high capacity
- Iron-silicon aluminum magnetic ring, lower working temperature
- Highly efficient heat dissipation, low fan noise

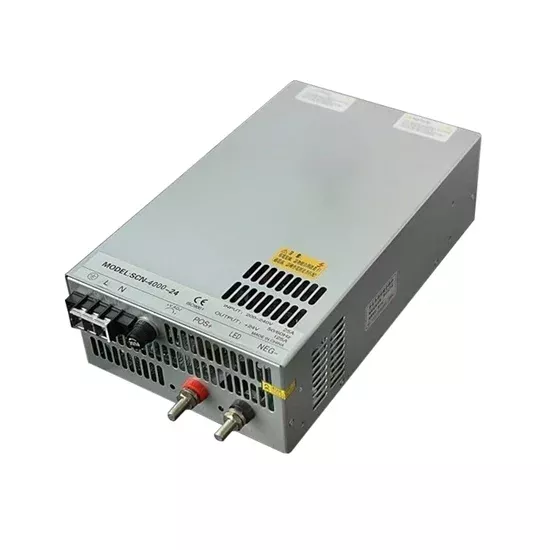

- 4000W 24V DC switching power supply has high working efficiency, stable output
- Exquisite appearance, small size, stable performance
Specification
| Model | ATO-MS-4000-24 | |
| Output | DC Voltage | 24V |
| Rated Current | 160A | |
| Rated Power | 4000W | |
| Ripple & Noise | 240mVp-p | |
| Voltage Accuracy | ±1% | |
| Voltage Adjustment Range | ±10% | |
| Load Adjustment Rate | <±0.5% | |
| Line Adjustment Rate | <±0.5% | |
| Input | Voltage Range | 200V~240VAC |
| Frequency Range | 47~63Hz | |
| Efficiency (Typ.) | 86% | |
| AC Current | 220VAC, 8A | |
| Inrush Current | 60A 230VAC | |
| Setup, Rise, Holdup Time | 200ms, 50ms, 20ms: 230V AC | |
| Protection | Overload | 105~135% rated output power Protection type: Constant current limiting, recovers automatically after fault condition is removed. |
| Over temperature | RTH3: Fan is always running, ≥90°C output shut down. | |
| Environment | Working Temperature | -10 ~ +50℃ |
| Working Humidity | 20~90% RH | |
| Storage Temperature | -20~+85℃ | |
| Storage Humidity | 10~95% RH | |
| Safety & EMC | Withstand Voltage | I/P-O/P: 1.5KVAC I/P-FG: 1.5KVAC O/P-FG: 0.5KVAC |
| Leakage Current | I/P-O/P， <6mA at 1.5kVAC； <1.5mA at 220VAC | |
| Isolation Resistance | I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC | |
| Others | Dimension | 312*190*95mm (L*W*H) |
| Weight | 7.0kg |
Details
SMPS Power Supply Applications
- Power ToolsElectric Saw, Drilling Machine, Ginder, Sand Blast Machine, Puching Machine, Weeding Machine, Air Compressor, etc.
- Offices DevicesComputer, Printer, LCD Monitor, Scanning Machine, etc.
- Electrics & Household ApplianceTV, VCRS, Radio, Dust Collector, Fan Lamp or LED Strip, Sewing Machine, Microwave Oven, Fridge/Freezr, Coffemarker, etc.
- Industrial EquipemntMonitoring Equipment, Shipping, Vehicle, Metalhalide Lamp, Solar System, Wind Power Generation, etc.
Tips: What causes noise in switching power supply?
- The noise generated during the use of the switching power supply. The switching power supply will change the current, resistance and other factors instantaneously in the process of deployment, which will lead to the change of the internal situation of the switching power supply. This kind of change generally has the characteristics of rapidity and rapidity, so it is easy to generate noise and affect the surrounding environment.
- Noise generated by the loss of internal components of a switching power supply. Due to the frequent operation of the switching power supply, there is a certain loss of its internal components. Therefore, when the internal components of the switching power supply are lost, it will directly lead to the generation of noise.
- Noise is generated by natural factors. The current has strong physical characteristics, and it is easily affected by external natural factors during the operation. For example, during the use of the switching power supply in thunderstorms, it is easy to generate a lot of noise.
- Noise generated by the influence of the circuit. The switching power supply has a control effect on the entire circuit system, and the circuit system will also react to the switching power supply under certain conditions, which will affect the switching power supply and cause noise due to questionable circuit system.
