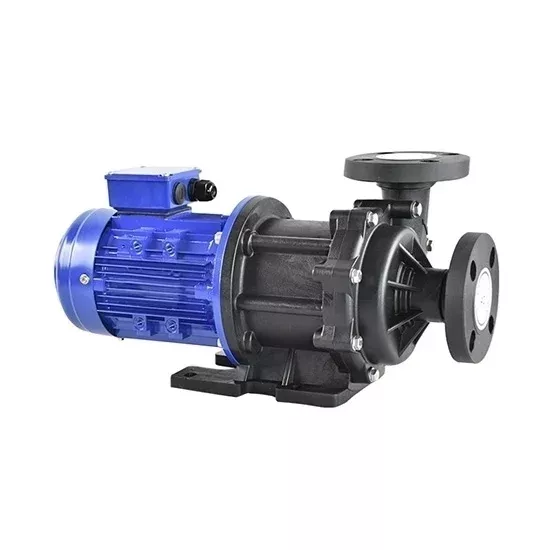

A 3 hp magnetic drive pump refers to a type of industrial pump that utilizes magnetic coupling to transfer power from the motor to the pump impeller without a direct mechanical connection. Magnetic drive centrifugal pump adaptable to IEC standard motor. This type of pump is suitable forchemical industry and metal industry.
Features:
- ETFE (carbon-fiber reinforced) wetted-end material.
- Able to handle many types of chemical and temperature up to 90 ℃.
- Available in flange connections.
Specification:
| Model | ATO-353PW-F | |
| Specific Gravity | 1.2 | |
| Frequency | 50Hz, 60Hz | |
| Rated Voltage | 3-phase 380V (please contact us for other voltages) | |
| Pump performance at specific point (M-L/min) | 50Hz | 24-150 |
| 60Hz | 32-120 | |
| Motor Output | 3 HP (2.2 kW) | |
| Flange Size | 32 mm (outlet); 32 mm (inlet) | |
| Casing Material | ETFE | |
| Shaft Material | ceramic | |
| Bearing Material | carbon | |
| O-ring Material | FKM | |
| Interface Mode | thread, flange | |
| Net Weight | 46kg |
Structure:
Dimension (Unit: mm)
| Model | W | H | L | a | b | c | d | e | f |
| 352PW-F | 160 | 242 | 505.5 | 222.5 | 132 | 155 | 130 | 120 | 78 |
Tips: How to Prime a Magnetic Drive Pump?
- Ensure the magnetic drive pump is turned off and disconnected from the power source.
- Open the suction valve on the inlet side of the pump.
- Pour liquid into the inlet until the pump is filled.
- Close the suction valve.
- Turn on the pump and let it run for a few seconds to ensure that it is working properly.
It is important to never run a magnetic drive pump dry as this can cause damage to the pump. Always ensure that the pump is primed with the appropriate fluid before turning it on.
