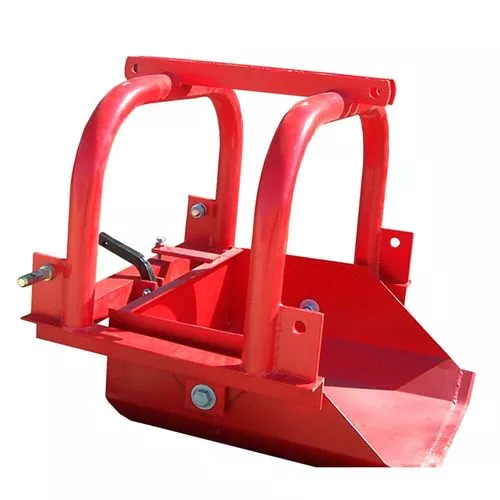

Product Overview3-Pt. 24″ Dirt Scoop. The bucket construction is made from reinforced 2-3/8″ tubular steel frame and 2-1/4″ angle iron. The bucket dimensions are 24″ wide x 25″ deep x 10-1/2″ high. The bucket capacity is 3.6 cubic feet; however the scoop will hold up to 4 cubic feet based on the composition of the soil or material being moved. The bucket balances on the center mounted frame bushing for easy dumping. The bucket pin size is 7/8″. The cutting edge is 24″ long x 2-1/2″ wide x 5/16″ thick. The recommended tractor HP for this scoop is 15 to 35. The scoop has category 1 hitch pins installed.
- Specifications:
- Bucket capacity: 3.6 cu. ft. but can move up to 4 cu. ft. (based upon material composition)
- Bucket construction: 2-3/8″ tube & 2-1/4 angle
- Cutting edge: 25″ x 2-1/2′ x 5/16″ (iron bucket)
- Dimensions: 24″ w x 24″ d x 11″ (pin size 7/8″)
- Hitch category: 1
- Tractor hp: 15-35 hp
- Weight: 138.85 lbs.
