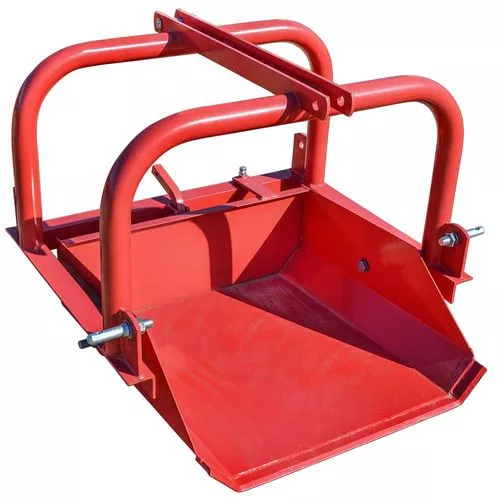

Product Overview
The dirt scoop frame construction is made from reinforced 2-3/8 inch tubular steel frame and 2-1/4 inch angle iron. The bucket dimensions are 30 inches wide by 25 inches deep by 10-1/2 inches high. The bucket capacity is 4.5 cubic feet; however, based upon the composition of the soil or material being moved, it can handle up to 6 cubic feet.
The bucket balances on the center mounted frame bushing for easy dumping. The bucket pin size is 7/8 inch. The beveled cutting edge is 30 inches long by 2-1/2 inches wide by 5/16 inches thick. The recommended tractor HP for this scoop is 15 to 35. The scoop has Category 1 hitch pins installed. Additionally, the bucket is equipped with a leveling screw to adjust to your needs.There is a manual trip lever that a rope can be attached to and actuated by hand.
Specifications:
- 3-point dirt scoop
- Cutting edge: 30 inches wide
- Reversible mounting
- 2-3/8 inch tubular steel frame with 2-1/4 inch angle iron
- Capacity: 4.5 to 6 cubic feet
- Category 1 hitch
- Weight: 156 lbs.
