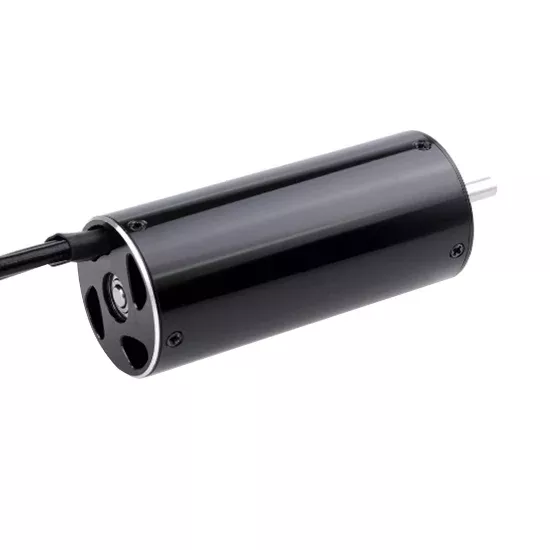

Cheap price brushless waterproof motor with a speed of 4000KV, maximum current 120A, length*diameter 68mm*29mm, brushless motor has significantly higher efficiency and performance and is ideal for RC boats.
Specifications
- Model: ATO-RB-2968
- Rotational Speed: 4000KV
- Maximum Current: 120A
- Maximum Voltage: 15V
- Maximum Power: 1800W
- Length: 68mm
- Diameter: 29mm
- Winding Method: DELTA
- Number of Turns: 2.5T
- No-load Current: 2.9A
- Max Seed: 60000KV
- Shaft: 4mm
- Number of Rotor Stages: 4
- Weight: 185g
Features
- 4-stage 12-slot high-torque motor design
- CNC machined billet, 6061-T6 aluminum heat sink
- High-purity copper coil for maximum performance
- High-speed ABEC5 oversized bearings
- Highly balanced rotor, high smoothness, accuracy and high speed
- Ultra-thin (0.2mm) stator blades
- Removable/replaceable rotor
- Precision design for maximum energy conversion
Dimension (Unit: mm)
Detail
Tips: How to choose the size of an RC boat motor?
- 28-29mm can size- will power most hulls up to 600mm.
- 36mm can size- up to around 800mm.
- 40mm can size- up to 1200mm as long as it’s a light brushless dedicated or abs hull.
- Anything over that will require a56– 58mm motor.
