Product Overview

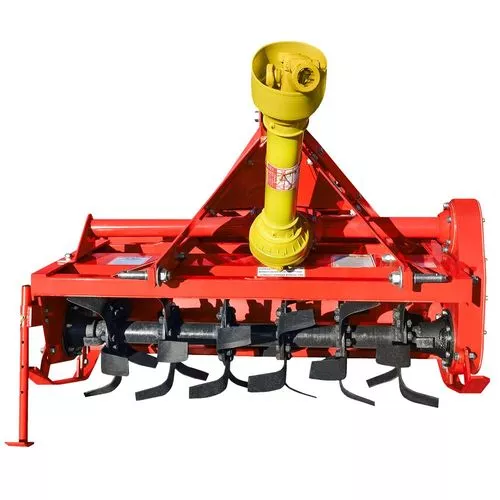

With a working width of 48 inches, this 3-point rotary tiller has 6 flanges with 6 tiller blades each. The recommended tractor horsepower for this tiller is 20 to 35 hp.
Specifications:
- CGR-48 Rotary Tiller
- Working width: 48 inches
- Will till to a depth of 6 to 7 inches
- Offset to right: 4 inches
- 542 lbs.
- Heavy-duty cast iron gearbox: standard
- Category 1 hitch: standard
- When more gear oil is needed, use 26940 – GL5-85W-140
- Number of flanges: 6
- Number of blades per flange: 6
- Total number of blades: 36
- Required tractor hp: 20 to 35
- Equipped with a parking stand
- Replacement ASC 77729 rotary tiller tine pack (one left one right includes nuts and bolts)
- Replaceable skid shoes
- PTO shaft replacement, ASC 40944 or 89364
- Use ASC 31971 for a replacement friction plate
- Replacement output gasket for gearbox, ASC 78819
- Replacement gearbox use ASC 78796
- Replacement seal lip use ASC 78808
- Replacement double bearing use ASC 78809
- Replacement gear – 35 teeth use ASC 78810
- Replacement gear – 16 teeth use ASC 78811
- Replacement gear – 28 teeth use ASC 78812
- Replacement gasket use ASC 78813
- Replacement output gasket 0.8 mm use ASC 78818
- Replacement output gasket 0.5 mm use ASC 78819
- Replacement input gasket 9.4 mm use ASC 78820
- Replacement input gasket 0.2 mm use ASC 78821
- Replacement seal double lip use ASC 78822
- Replacement sealed ball bearing (6308) use ASC 78823
- Replacement ball bearings (6308) use ASC 78824
- Replacement ball bearing (6307) use ASC 78825
- Replacement ball bearing (6207) use ASC 78826
- Replacement pinion shaft use ASC 78827
- Replacement output gear – 19 teeth use ASC 78828
- Replacement side gearbox assembly use ASC 78797
- Replacement Rotor use 78798
We also carry a variety of other tillovator sizes, as well as King Kutter and Caroni brands.
