Product Overview

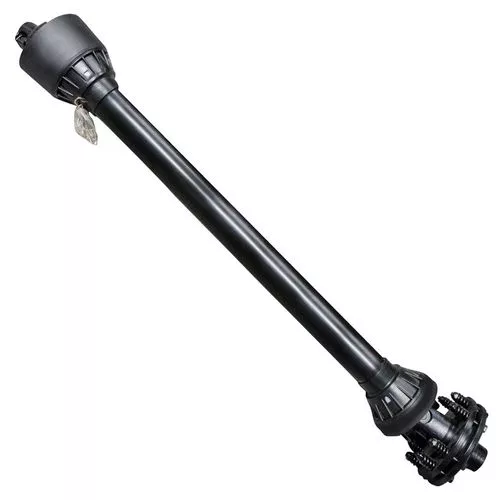

For use with rotary cutting devices, this PTO shaft is made to fit a 7 foot lift cutter. It operates with a 1-3/8 in 6-spline tractor yoke and 1-3/8 in. 6 spline implement yoke. The implement yoke on this rotary cutter PTO shaft also features a 2 disc friction clutch.
Specifications
- PTO Shaft
- Grizzly® Series 6
- 7 Ft. HD lift type
- Collapsed length: 54.2 in.
- Extended length: 68.3 in.
- 62 HP at 540 RPM
- 98 HP at 1000 RPM
- Tractor yoke: 1-3/8 in., 6 spline
- Implement yoke: 1-3/8 in., 6 spline
- Implement yoke: 2 disc friction clutch
- Replaces Kodiak KDK03-0004 and other brands
- For Replacement Discs in the clutch, use 102249 – Friction Disc (qty 2)
