Product Overview

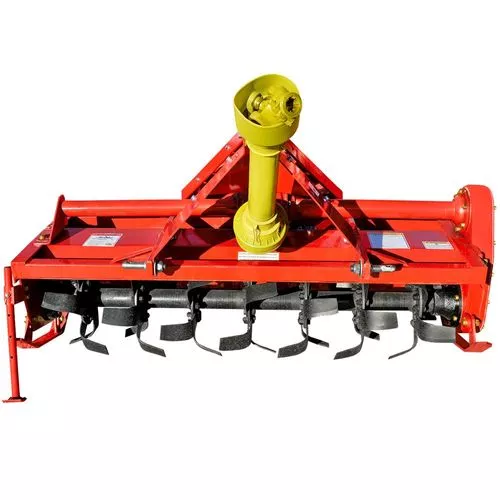

Tillovators churn the earth to ready your fields for planting season. Prepare yours with this 60 inch rotary tiller, complete with a standard slip clutch and a cast iron gear box. This machinery has 42 carbon steel tines that will dig into the soil. It is recommended to use this tiller with a 25 to 40 HP tractor.
Specifications:
- Rotary Tiller
- Working width: 60 inches
- Will till to a depth of 6 to 7 inches
- Heavy duty cast iron gear box
- Slip clutch
- 590 lbs.
- Category 1 quick hitch
- Parking stand
- 6 tines per flange, 42 tines total (21 right hand and 21 left hand)
- Number of flanges: 7
- Replaceable skid shoes
- Tractor power: 25-40 HP
- When more gear oil is needed, use ASC 26940 – GL5-85W-140
- PTO shaft replacement, ASC 40944 or 89364
- Replacement tines; ASC 77729
- Replacement gearbox use ASC 78796
- Replacement seal lip use ASC 78808
- Replacement double bearing use ASC 78809
- Replacement gear – 35 teeth use ASC 78810
- Replacement gear – 16 teeth use ASC 78811
- Replacement gear – 28 teeth use ASC 78812
- Replacement gasket use ASC 78813
- Replacement output gasket 0.8 mm use ASC 78818
- Replacement output gasket 0.5 mm use ASC 78819
- Replacement input gasket 9.4 mm use ASC 78820
- Replacement input gasket 0.2 mm use ASC 78821
- Replacement seal double lip use ASC 78822
- Replacement sealed ball bearing (6308) use ASC 78823
- Replacement ball bearings (6308) use ASC 78824
- Replacement ball bearing (6307) use ASC 78825
- Replacement ball bearing (6207) use ASC 78826
- Replacement pinion shaft use ASC 78827
- Replacement output gear – 19 teeth use ASC 78828
- Replacement side gearbox assembly use ASC 78797
We also carry a variety of other tillovator sizes, as well as King Kutter and Caroni brands.
