Product Overview

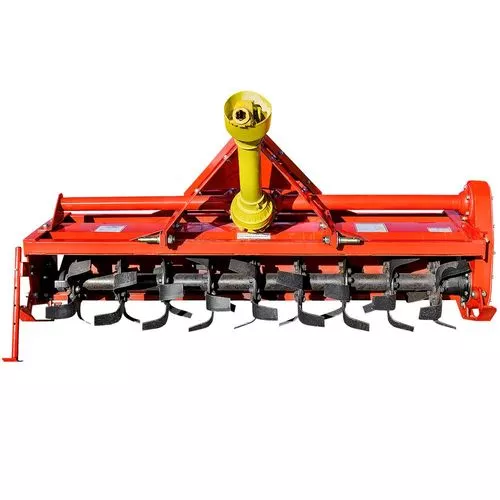

Whether it is spring, summer or fall planting, this 72 inch gear driven rotary tiller will help you prepare your soils for planting. This Tillovator has a heavy duty cast iron gear box and comes with a power take off shaft equipped with a slip clutch.
Ready to attach, this rotary tiller will turn over and mix soils easily. The tiller has 9 rotary flanges equipped with 6 high carbon steel tines each
Specifications:
- Gear driven rotary tiller
- Width: 72 inches
- Will till to a depth of 6 to 7 inches
- 665 lbs.
- Heavy duty cast iron gear box
- Slip Clutch
- Category 1 quick hitch
- Parking stand
- When more gear oil is needed, use ASC 26940 – GL5-85W-140
- Number of Tines Per Flange: 6
- Number of Flanges: 9
- Total Number of Tines: 54
- Tine construction: hard carbon steel
- Replaceable Skid Shoes: Standard
- Recommended PTO HP: 35-50
- PTO shaft replacement, ASC 40944 or 89364
- Friction disc replacement, ASC 40219
- Replacement tines; ASC 77729
- Replacement gearbox use ASC 78796
- Replacement seal lip use ASC 78808
- Replacement double bearing use ASC 78809
- Replacement gear – 35 teeth use ASC 78810
- Replacement gear – 16 teeth use ASC 78811
- Replacement gear – 28 teeth use ASC 78812
- Replacement gasket use ASC 78813
- Replacement output gasket 0.8 mm use ASC 78818
- Replacement output gasket 0.5 mm use ASC 78819
- Replacement input gasket 9.4 mm use ASC 78820
- Replacement input gasket 0.2 mm use ASC 78821
- Replacement seal double lip use ASC 78822
- Replacement sealed ball bearing (6308) use ASC 78823
- Replacement ball bearings (6308) use ASC 78824
- Replacement ball bearing (6307) use ASC 78825
- Replacement ball bearing (6207) useASC 78826
- Replacement pinion shaft use ASC 78827
- Replacement output gear – 19 teeth use ASC 78828
- Replacement side gearbox assembly use ASC 78797
We also carry a variety of other tillovator sizes, as well as King Kutter and Caroni brands.
