Product Overview
Specifications

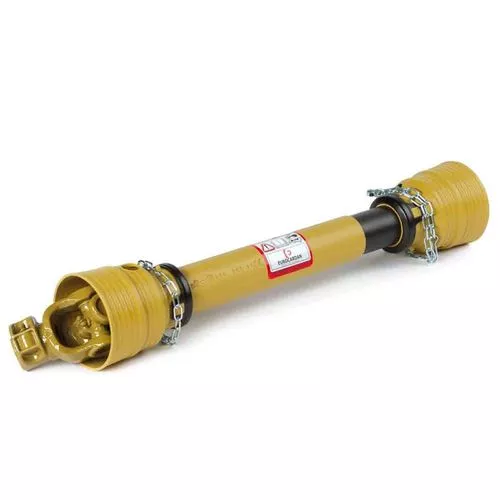

- PTO Shaft
- Part Number: AX15000-0077
- Made by Eurocardan
- TX1 series – 1 3/8″ x 6 spline push button style tractor end yoke w/a 5/8″ smooth bore w/keyway and set screw implement end
- Safe extended length: 37.9″
- 27.8″ overall length closed up
- 16 HP at 540 RPM
- 24 HP at 1000 RPM
Smooth Bore & Shear Pin Implement End Yoke
| Assembly Description | Series Size | Length Overall | Description I.E. = Implement End T.E. = Tractor End |
|---|---|---|---|
| AX15000-0077 (5/8″) | 1 | 28″ | 5/8″ smooth bore w/keyway / set screw / 1 3/8-6 T.E. |
