Product Overview
Specifications

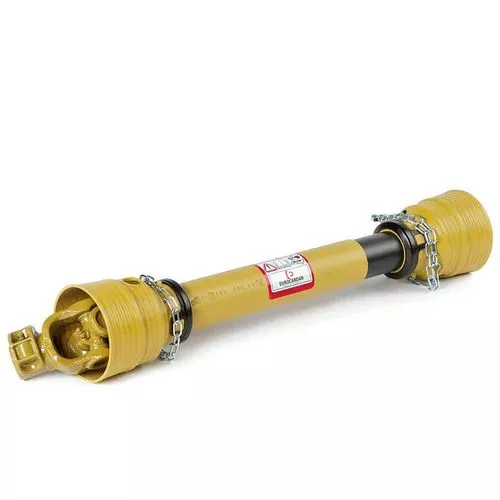

- Eurocardan
- This item is an alternate to 89803 – Series 4 PTO Shaft
- Part Number: AX45000-0182
- “To Fit” 5′ Lift Cutter
- Series 4
- 1-3/8 Spl x 1-3/8 Smooth W/1/2″ Shear Pin
- Extended length: 49.6″
- Collapsed length: 35.8″
- 35 HP at 540 RPM
- 54 HP at 1000 RPM
- Max HP 540/1000 – 47/74
- To fit some J-Bar Rotary Mowers
Smooth Bore & Shear Pin Implement End Yoke
| Assembly Description | Series Size | Length Overall | Description I.E. = Implement EndT.E. = Tractor End |
|---|---|---|---|
| AX4 | 4 | 35.8″ | 1 3/8″ smooth yoke w/ 1/2″ shear pin hole / 1 3/8-6 T.E. |
