Product Overview

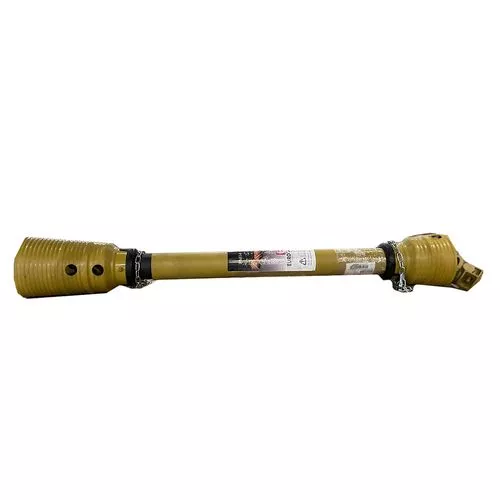

Eurocardan® PTO assemblies are regarded as some of the best in the industry. This is a series 4 PTO shaft that is 1-3/8 in. 6-spline on both the tractor and implement end. The shaft is 32 inches joint to joint and 40 inches in overall length. This PTO assembly includes the shielding.
Specifications
- Eurocardan® Series 4 PTO shaft
- 1-3/8 in. 6-spline tractor and implement end
- Overall length: 40 in.
- Safe extended length: 56.9″
- Complete PTO assembly with shielding
- 35 HP at 540 RPM
- 54 HP at 1000 RPM
- Made to fit flail mowers (TL and TM)
- Fits Caroni Estate Mowers
- Use ASC 54978 for black colored shield
Splined Implement End Yoke
| Assembly Description | Series Size | Length Overall | I.E. = Implement EndT.E. = Tractor End |
|---|---|---|---|
| AX4 | 4 | 40″ | 1 3/8-6 spline yoke both ends |
