Product Overview

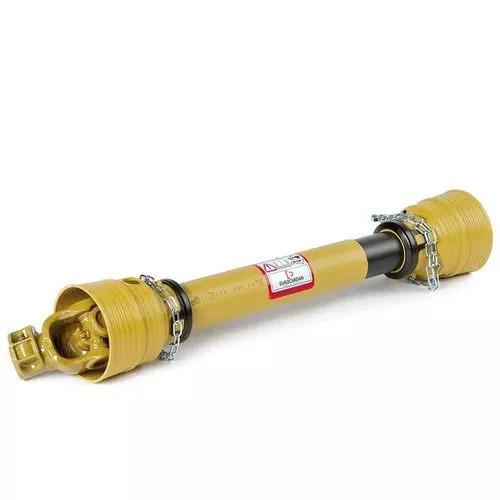

This Series 4 PTO shaft has a 1-3/8″ 6-spline tractor end and 1-3/8″ smooth round yoke. The PTO shaft or driveline shaft is 42.5″ fully collapsed from end yoke to end yoke. Max safe extend length is 60.6″. This PTO shaft has a rating of 35 HP at 540 RPM and 55 HP at 1000 RPM for series 4. Made by Eurocardan, a world class leader in PTOs, the power take-off shaft is made to fit a 6 ft. lift cutter.
Specifications
- Eurocardan Series 4 PTO
- Part Number: AX45000-0185
- 1-3/8″ 6-spline tractor end by 1-3/8″ smooth round yoke end
- Shear pin hole: 1/2″
- Shear pin yoke held on by snap rings
- Fully collapsed Length: 42.5″ from end yoke to end yoke
- Safe extended length: 60.6″
- 35 HP at 540 RPM
- 55 HP at 1000 RPM for series 4
- 1/2″ x 3-1/2″ grade 2 bolt with lock nut to be used for shear bolt
- Protective covering
- To fit 6 ft. lift mower
Not what you are looking for? Check out the full line of PTO shafts that we carry at Agri Supply &174;.
Smooth Bore & Shear Pin Implement End Yoke
| Assembly Description | Series Size | Length Overall | Description I.E. = Implement End T.E. = Tractor End |
|---|---|---|---|
| AX4 | 4 | 42.5″ | 1 3/8″ smooth yoke w/ 1/2″ shear pin hole / 1 3/8-6 T.E. |
