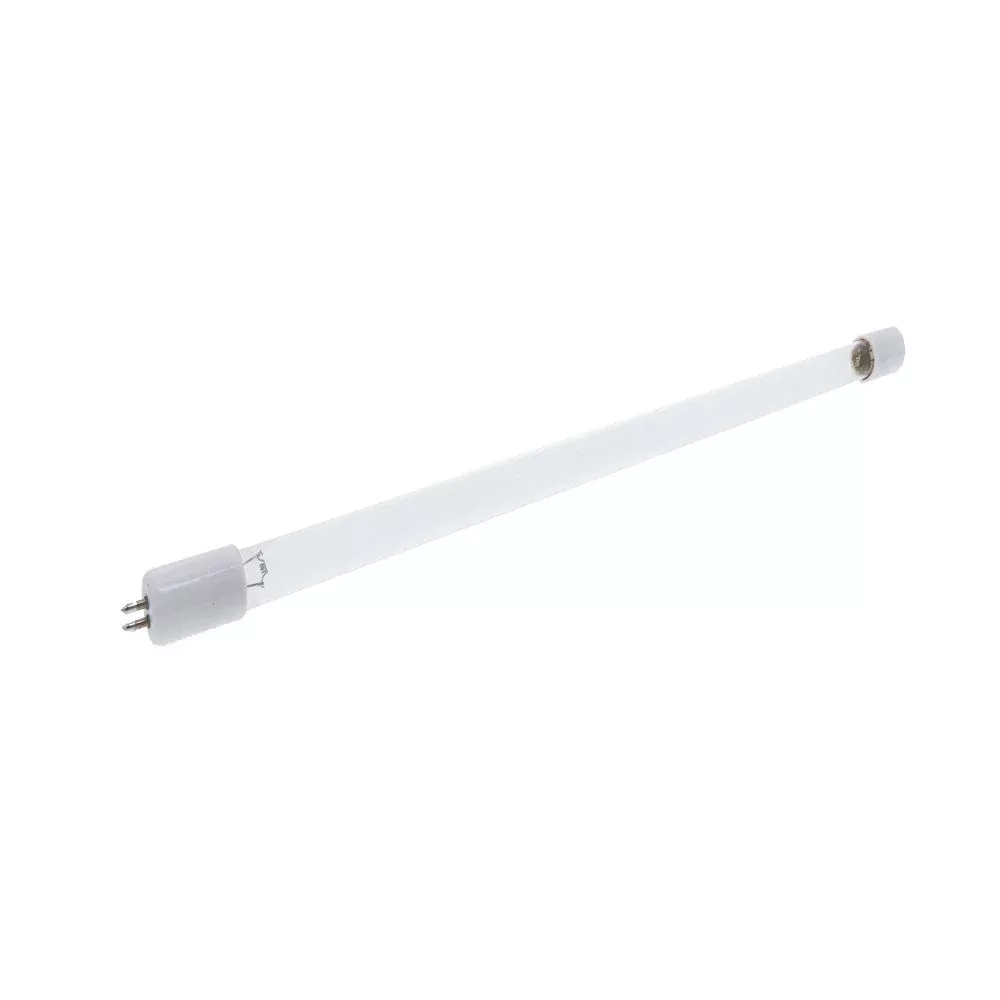

This UV Lamp is designed for use in compatible ultraviolet water disinfection systems requiring a 30-watt, 4-pin single-end lamp. Engineered to deliver reliable UV performance, it provides effective germicidal output for residential and light commercial water treatment applications.
Specifications:
- Lamp Life: 12 months (10,000 hours)
- Base Type: 4 Pins
- End Configuration: Single End
- Length: 11-5/16″
- Diameter: 0.61″
- Wattage: 30 Watts
- Voltage: 115V
- Amperage: 0.425A
- UV Output: 13 Watts
- Spectral Peak: 253.7 nm
Compatibility:
Compatible with select ultraviolet water disinfection systems that utilize a 30-watt, 4-pin single-end UV lamp with matching dimensions and electrical specifications. Always verify lamp specifications and dimensions before ordering to ensure proper fit and performance.
Note: UV lamps should be replaced annually, or after approximately 10,000 hours of operation, to maintain optimal disinfection performance.
Compatible with:
| Ideal Horizons | 41003, 42002, LBR-4, LBRE-4 |
| AeroLogic | Aero-12 |
| Bio-Logic | Pure Water Pack |
| MINIPURE | MIN-1.5, MIN-3 |
| Tank Master | TM16 |
| Polairs Scientific UV | GL14SE4P, UV-2C |
| R-Can / Sterilight | S1RL |
| Trojan UV | 600, 602, 622, 650144, UV 600, UV 601, UV 602, UV 622 |
| Watts Water Technology | WUV2, WUVLAMP2 |
| Wedeco UV | LBRE-4 |
