Product Overview
- Specifications:

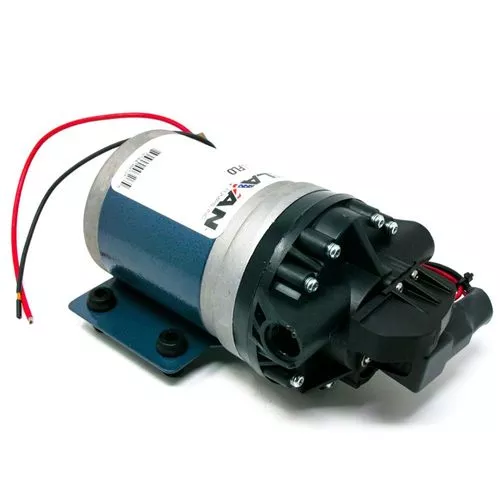

- Delavan
- Model number: 7870-101E-SB
- Max psi: 60
- GPM: 7
- Amps: 17
- Motor type: 12 VDC permanent magnet, totally enclosed, non-ventilated
- Leads: 12 AWG, 12″ long
- Temperature Limits: Motor is not equipped with thermal protection. For user safety, optimal performance, and maximum motor life, the motor surface temperature should not exceed 180 degrees F (82 degrees C)
- Liquid Temperature: 140 degree F (60 degree C) Max.
- Priming Capabilities: 14 feet (4 m)
- Max flow: 7.0 GPM
- Pressure shut off: 60 PSI
- Demand switch- operates only when liquid flow is required
- 5 chamber pumps are smooth running, and can run dry, and self-prime
- Inlet / outlet Ports: 7870: 1/2″ FNPT – 7970: Delavan quick attach
- Can be used for water, herbicide or pesticide
- This pump has been tested by the manufacturer for quality control and may contain a small amount of water.
