Product Overview

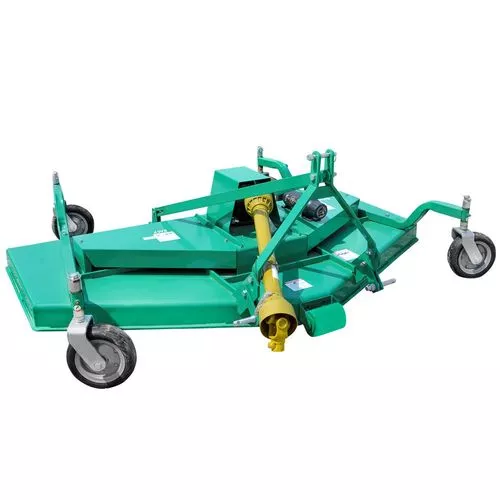

This 84 inch finish mower with a rear discharge is constructed of heavy duty 6 gauge steel. The rear discharge eliminates grass buildup in uncut areas and reduces blade wear.
The 3-point hitch can adjust to a Category 1 or 2.The shielded PTO shaft is included.The gear box is rated to 75 HP.
This mower has an 84 inch cut provided by 3 belt driven blades. The solid rubber tires are 3 inches wide and 10 inches in diameter.The finishing mower deck can be adjusted for a cutting height between 1-3/4 and 4-3/4 inches.
This mower comes equipped with a chain guard to prevent debris from accidentally projecting from the mower.
Specifications:
- 7 Foot Finishing mower
- Rear discharge
- Ratio: 1:1.93 gearbox
- Requires a 30 to 45 HP tractor
- Category 1
- Cutting width: 83.86″
- Overall width: 87.99″
- Cutting height: 1.75″ to 4.75″
- Number of blades: 3
- Blade thickness: 1/4″
- Weight: 727 lbs.
- Gauge wheel: 3″ wide x 10″ tall (heavy-duty)
- PTO driveline: series 4
- Includes front anti-scalping roller
- Deck thickness: 5 mm (6 gauge)
- Quick coupler PTO included
- Chainguard included
- 75 HP gearbox
- Weight: 727 lbs.
- Blade Speed: 88 m/s; 2,211 RPM
- Use ASC 75289 replacement blade
- Use ASC 69612 replacement quill housing
- Use ASC 105877 for replacement gearbox
- For Replacement belt, ASC 75294
- For replacement spindle assembly, use ASC 75295
- For key to fit spindle, use ASC 105901
- For replacement wheel and fork assembly, use 133968
- For replacement wheel only, use 75290
- For replacement PTO shaft, use 89798
