Product Overview

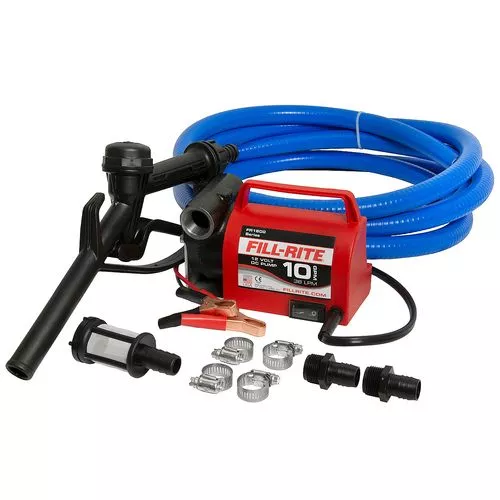

This Fill-Rite® diesel transfer pump, model FR1614, is a light duty, portable rotary vane transfer pump. The transfer pump is self-priming and can pump up to 10 gallons per minute.
This pump is 12 Volt DC and runs off of a battery.It comes equipped with a 6-1/2 ft. battery cable with clips. As a complete pump kit, it also has 8 ft. of 3/4 in. hose, pick up strainer, for the inlet and outlet, and a plastic 3/4 in. plastic nozzle. This pump is compatible with diesel and antifreeze fluids.
- Specifications:
- Fill-Rite® model FR1614
- 12Volt DC diesel transfer pump
- Maximum flow rate: Up to 10 GPM
- Portable self-priming rotary van pump
- 6-1/2 ft. battery cable with clips included
- Includes 8 ft. discharge hose, nozzle, swivel, hose barbs and clamps
- Compatible fluids: diesel, anti-freeze
- Cast iron rotary vane
- Standard-Duty
- Non-Explosion proof
- Portable pump
- Bypass valve and lip seal for leak protection
- Carrying handle
- Perfect for Agriculture, Construction, Logging
- Fluid handling: Anti-Freeze, Diesel
- Portable
- Motor Power (HP): 0.2
- Motor Speed (RPM): 3800
- Flow Rate Range (GPM): 0-10GPM
- Max discharge pressure (PSI): 16
- Max operational pressure (PSI): 50
- Current range (A): 17amp
- 1/5 HP motor
- 20 amps
- This kit complete with a hose, nozzle, and installation components.
- 3/4 in. NPT inlet and 3/4 in. NPT outlet
- 30 minute duty cycle
- 12 PSI internal bypass valve
- Strainer to prevent contaminants from entering pump
- Includes: Pump, Manual PVC nozzle, 8′ PVC suction and discharge hose, 2-wire, 12-gauge with 30 amp fuse; suction hose strainer with hose barb and clamps. NPT
