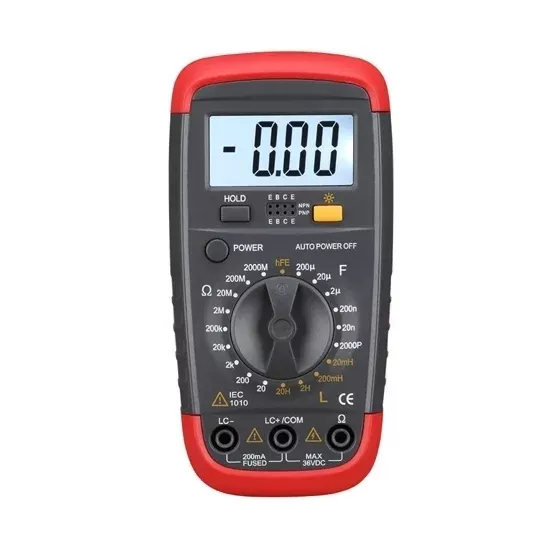

The provided smart multimeter can be used for measuring inductance/resistance/capacitance. It is a digital multimeter with a 1999 max display, manual range mode, triode testing, high accuracy, portable design, easy operation, widely used in electronics, electrical engineering, and electrical repair, among other fields.
Specifications
| Model | ATO-MLT-UA6243L |
| Maximum Display Value | 1999 |
| Operation Mode | Manual Range |
| Battery Type | 6F22 9V Battery (Not Included) |
| Weight | About 300g |
| Resistance | 20Ω/200Ω/2kΩ/20kΩ/200kΩ/20MΩ/200MΩ/2000MΩ |
| Capacitance | 2000pF/20nF/200nF/2μF/20μF/200μF |
| Inductance | 20mH/200mH/2H/20H |
| Input Impedance | 10MΩ |
| Triode Testing | √ |
| Data Hold | √ |
| Low Battery Display | √ |
| Back Light | √ |
| Function Protection | √ |
Dimension (Unit: mm)
Details
Applications
Tips: How to use a multimeter?
To use a multimeter, follow these general steps:
- Set the dial to the appropriate function and range for the measurement you want to take.
- Connect the probes to the multimeter by plugging them into the appropriate jacks.
- Connect the probes to the circuit or component being measured.
- Read the measurement value on the multimeter display.
- Turn off the multimeter and disconnect the probes from the circuit.
For specific instructions, consult the manual that came with your multimeter or search online for tutorials and videos on using a multimeter. Additionally, it’s important to always observe safety precautions when working with electricity, such as wearing appropriate protective gear and ensuring the circuit or component is turned off before taking measurements.
