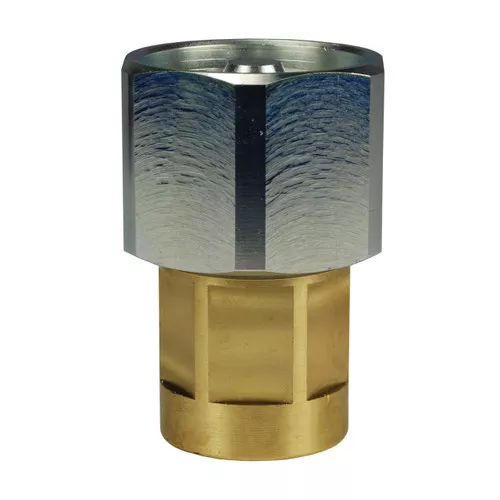

Dixon’s W-Series Hydraulic Wingstyle Interchange Hex-Nut Female Coupler is designed for applications requiring a coupling that can be connected under residual pressure with minimum spillage and air inclusion. Widely used on dump trailer wet-line hydraulic systems and oil field equipment. Not recommended for continuous hydraulic impulse applications.
Note: Interchangeable with Aeroquip 5100 series, Parker 6100 series, Snap-Tite 78 series, Faster series-FB, and Safeway S51 series.
Safety Notes: Although wingstyle couplings are able to connect and disconnect while under pressure, it is recommended that hydraulic power supply be de-energized during connection to ensure operator safety. If it is not possible to de-energize the circuit, operators must be aware of their surroundings to ensure that an attachment or tool does not put them at risk, once hydraulic power is applied during the connection process.
