Note: This solenoid valve cannot be used for drinking water.

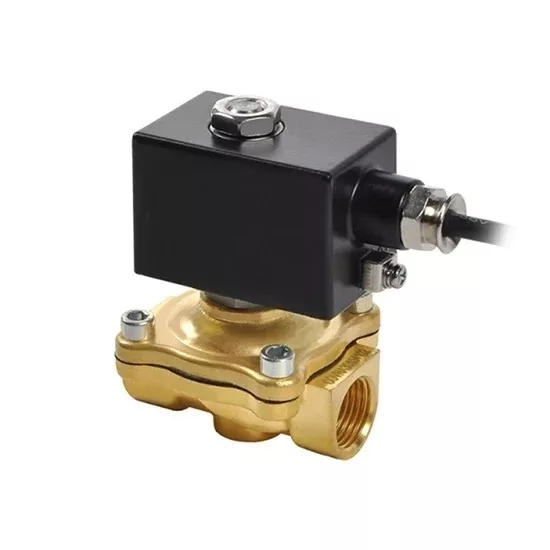

The coil shell of the explosion-proof solenoid valve has a blocking effect on the gas explosion energy transfer. Pressure of NO solenoid valve between 0.0 MPa and 1.0 MPa.
Specification:
| Model | ATO-2WEX-10 | ATO-2WEX-15 | ATO-2WEX-20 | ATO-2WEX-25 | ATO-2WEX-32 | ATO-2WEX-40 | ATO-2WEX-50 |
| Port Size | 3/8″ | 1/2″ | 3/4″ | 1″ | 1-1/4″ | 1-1/2″ | 2″ |
| Orifice (mm) | 10 | 15 | 20 | 25 | 32 | 40 | 50 |
| Cv | 4.5 | 4.5 | 9.3 | 12 | 24 | 29 | 48 |
| Min Pressure | 0.0 MPa | 0.0 MPa | 0.0 MPa | 0.0 MPa | 0.0 MPa | 0.0 MPa | 0.0 MPa |
| Max Pressure (AC 20VA) | 0.7 MPa | 0.7 MPa | 0.7 MPa | 0.7 MPa | 1.0 MPa | 1.0 MPa | 1.0 MPa |
| Max Pressure (DC 16W) | 0.7 MPa | 0.7 MPa | 0.7 MPa | 0.7 MPa | 1.0 MPa | 1.0 MPa | 1.0 MPa |
| Medium | steam and hot water, civil gas, oil | ||||||
| Fluid Temperature | NBR (-5 ℃ to 80 ℃), EPDM (-5 ℃ to 100 ℃), VITON (-5 ℃ to 120 ℃) | ||||||
| Screw Thread | NPT (contact us for G screw thread if you need) | ||||||
| Port Thread | BSPP, BSPT, NPT, FLANGE | ||||||
| Voltage | AC 24V, 120V, 240V/60Hz; 110V, 220V/50Hz | ||||||
| Coils | Ex1620, 20VA (AC),16W (DC), IP65, 100% ED | ||||||
| Body Material | brass | ||||||
| Tolerance | ±10% | ||||||
| Seal | VITON, PTFE, NBR, EPDM | ||||||
| Armature Tube | stainless steel 304 (316 can be customized) | ||||||
| Explosion Proof | Ex mb II T4 Gb |
Explosion Proof Solenoid Valve NO Structure:
Thread Connection Dimension (Unit: mm)
| Size | 2WEX-10 | 2WEX-15 | 2WEX-20 | 2WEX-25 | |
| A | 68 | 68 | 68 | 97 | |
| B | 56 | 56 | 56 | 76 | |
| C | NO | 110 | 120 | 128 | 135 |
| NC | 100 | 110 | 117 | 125 | |
| D | 13.5 | 13.5 | 16.5 | 20 |
| Size | 2WEX-32 | 2WEX-40 | 2WEX-50 | |
| A | 115 | 122 | 166 | |
| B | 86 | 93 | 118.5 | |
| C | NO | 148 | 157 | 182 |
| NC | 148 | 157 | 182 | |
| D | 24 | 28 | 36 |
Tips: Advantages of NBR
- Nitrile butadiene rubber has good heat resistance, and its heat resistance is better than natural rubber and styrene butadiene rubber.
- Rubber is endowed with better physical and mechanical properties and wear resistance by reinforcement.
- The antistatic property is excellent, and the plasticizing effect is better with polar lipids.
- Good compatibility with polar substances, such as PVC, alkyd resin, nylon.
