Product Overview

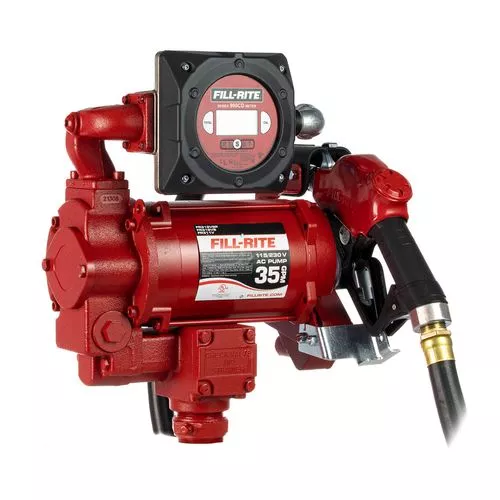

Composed out of cast iron, this dual voltage 115 and 230 transfer AC pump, designed by Fill-Rite®, can move up to 35 gallons per minute. Complete with a 1 in. x 18 ft. static hose and 1 in. high flow nozzle, this pump easily mounts onto a tank or barrel with its 2 in. threaded bung. This pump will provide long life as it can be used with diesel fuel, mineral spirits, kerosene, hexane, and heptane.
This 30 min. transfer pump has a 3/4 horsepower motor, as well as an automatic bypass valve and built-in junction box. It comes with a variety of safety features as well, such as its explosion-proof motor with sealed bearings, a heavy-duty switch, and a thermal overload protection unit. This pump also has a pressure relief valve and strainer assembly with an iron rotor and carbon vanes check valve.
- Specifications:
- Fill-Rite® model FR319VB
- 115 and 230 Volts High Flow AC Pump
- 35 GPM open discharge
- 27 GPM at the nozzle
- Cast iron housing and construction
- 30 min. duty cycle
- Explosion-proof 3/4 HP motor
- Iron rotor with carbon rotary vanes
- Self priming
- 1 in. x 18 ft. hose with static wire
- Compatible with diesel fuel, kerosene, heptane, hexane, and mineral spirits
- 2 in. threaded bung for tank mounting
- UL/cUL listed
- Perfect for Agriculture, Construction, Fleet/Transportation, Municipalities
- Strainer mesh size (micron): 40x40x.008″
- Inlet size: 1.25″
- Outlet size: 1″
- Motor power (HP): 0.75
- Max discharge pressure (PSI): 26
- Max operating pressure (PSI): 26
- Current range (A): 9.8/11.4 amps 4.9/5.7 amps
- 1 in. ultra high flow nozzle
- 901 meter included
- 2 year manufacture warranty
- Includes Pump, 900CD Digital Meter, 1″ x 18′ UL Listed Hose, 1″ Ultra Hi-Flow Nozzle
- Made in USA
In case you are looking for a different voltage fuel pump, or need replacement parts for your current piece, we offer plenty of fuel pumps and nozzle choices.
