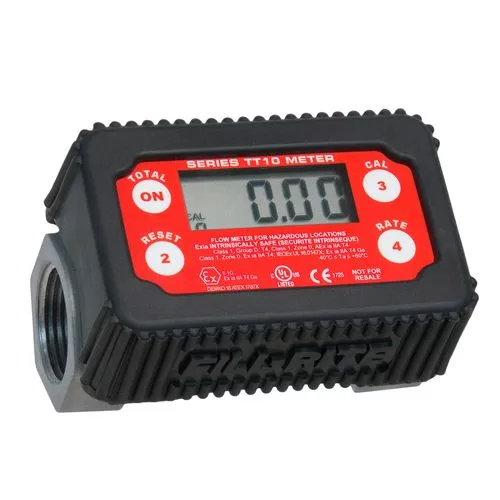

Product Overview
This digital in-line meter has a 1″ inlet/outlet and is built to withstand 50 PSI. This meter also is made out of aluminum and has a flexible mounting configuration with 1% accuracy ratings. This turbine meter comes ready to use with 2 AA batteries and also 1″ to 3/4″ reducer bushings. This can be installed either inline or at the end of house mounting.
Specifications
- Fill-Rite® brand
- Model number: TT10AN
- Highly accurate to +/-1%
- Protective rubber boot absorbs impact to minimize meter and electronic damage in harsh environments
- Lightweight
- Durable material
- Corrosion resistance and protection from degradation in extreme heat and fridged temperatures (-40° to 176°
- Perfect for Agriculture, Construction, Fleet/Transportation, Logging
- Fluid handling: Diesel, Gasoline, Mineral Spirits, Kerosene
- Long battery life (powered by (2) AA batteries that are included)
- Inlet/outlet ports: 1″ NPT or BSPP female
- Flow range: 2 to 35 U.S. GPM / 7.6 to 132.5 LPM
- Inlet size: 1″
- Outlet size: 1″
- Flow rate range (GPM): 2-35 GPM
- Max operating pressure (PSI): 50
- Working pressure: 50 PSI (3.4 bar) MAX UL 300 PSI (20.7 bar) burst
- Operating temperature: -40° F to 176° F (-40° to 60° C)
- Measurement units: ounce, pint, quart, liter, gallon
- Totalizer range: 0-90,000,000 units
- Batch range: 0.00-9999 units (blinks when batch exceeds 9999)
- Wetted materials: 304/316 stainless steel, aluminum acetal, gold
- Display: -40° F to 176° F (-40° C to 60° C)
- Power: 2 AA alkaline batteries (included)
- Memory: meter totals and calibration are preserved when replacing the batteries
- Meter dimensions: 4″ (w) x 2.6″ (d) x 2.9 (h)
- Includes: Meter, two 1″ to 3/4″ reducer bushings
