Product Overview

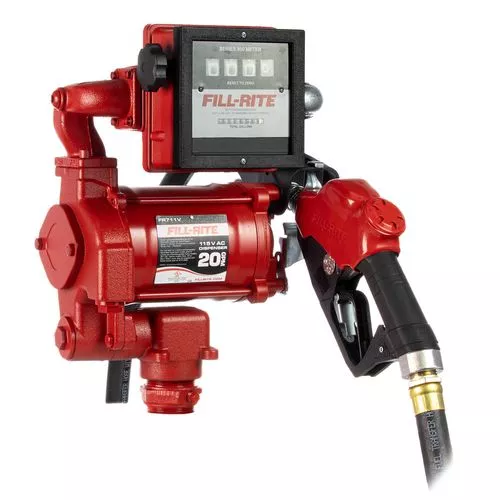

Constructed with cast iron, the FILL-RITE ® Fuel Transfer Pump Model FR711VA is a heavy-duty positive displacement rotary vane pump. The motor is 115 Volt and 1/3 horsepower. Additionally, the motor has sealed bearings, is explosion-proof, and is UL / cUL listed.
The transfer pump is constructed of cast iron pump housing with carbon vanes and sealed with stainless steel to reduce wear.Self-priming, the transfer fuel pumphas an integrated check valve for pressure relief.
This transfer pump includes an automatic Ultra Hi-Flow nozzle and flow meter.
115V AC 20GPM Heavy-Duty Fuel Transfer Pump with Digital Meter and Ultra High-Flow Auto Nozzle
Model number: FR711VA
60 Hz, 1/3 HP motor
Thermal overload protection switch
Explosion proof UL / cUL listed
Rotary vane pump with carbon construction
Integrated check valve with pressure release
2 in. threaded base for tank openings
Does not come with a suction pipe, but requires a 1-1/4 inch NPT size to fit the bung adapter. The manufacturer recommends using 1-1/4 inch galvanized pipe in your choice in length to fit your particular need.
900 Series flow meter
Explosion-proof motor
UL listing assuresthe highest level of safety engineering
Cast-iron construction
Mount type: Bung mount
Strainer mesh size (micron): 40 x 40 x .010″
Max discharge pressure (PSI): 22
Max operating pressure (PSI): 25
Current Range (A): 5.5 amps
Voltage/Power: 115V AC
High volume fuel transfer at a rapid 20GPM.
1 in. x 18 ft. dispenser hose
Perfect for Agriculture, Construction, Logging, Municipalities
1″ Automatic Ultra Hi-Flow diesel nozzle
Onboard thermal overload protection, protecting your pump from overheating
Included: Pump, 900C Mechanical Meter, 1″ x 18′ UL Listed Hose, 1″ Ultra Hi- Flow Nozzle
