Product Overview

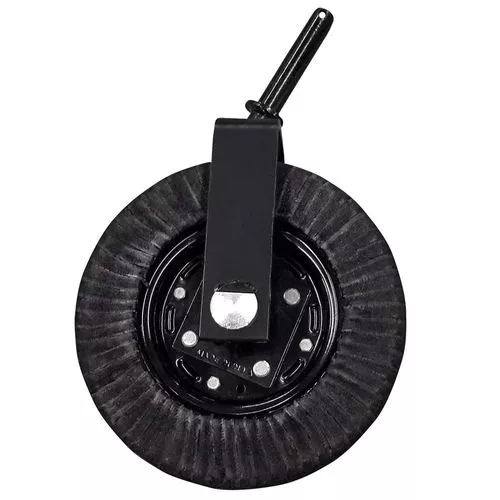

Replacement Grizzly® solid 4 x 8 laminated tailwheel complete assembly.
Specifications
- Brand: Grizzly®
- 4″ x 8″ laminated tail wheel:
- 15 3/8″ OD x 3 3/4″ width
- Rim has 4 mounting hole (1/2″ on 5″ bolt circle diameter)
- Hub:
- Fabricated steel with a 1″ sintered bushing w/a grease zerk
- Axle size is 1″
- 1″ axle bolt with castle nut & cotter pin
- Use 49324 for replacement Hub With Bushing
- Use 49643 for Friction Bushing only
- Wheel fork:
- Diameter of shank: 1 1/4″, 17/32″ mounting hole, 1″ axle hole, & 5.51″ internal leg width
- Length of the shank: 6.4″
- To fit many brands including Kodiak
