Product Overview

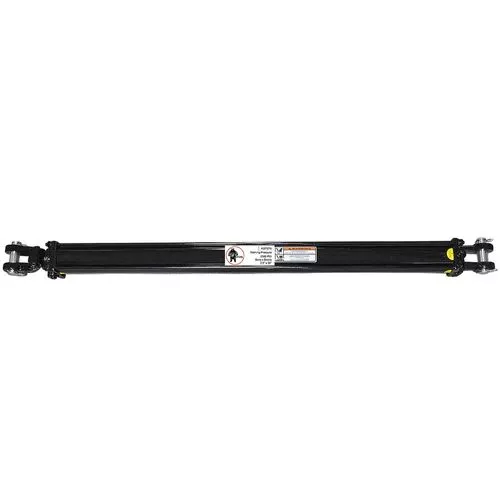

Replace hydraulic cylinders to keep your equipment running. This 2-1/2″ x 36″ cylinder has a rod diameter of 1-1/4″ and is constructed of high strength steel and includes tie rods to prevent high pressure failure.
- Specifications:
- Grizzly® Brand
- Model number: T25253610
- Bore: 2-1/2″
- Stroke: 36″
- Rod Diameter: 1-1/4″
- Retracted Length: 58-1/4″
- Extended Length: 94-1/4″
- Pin Diameter: 1″
- Port Size: 3/8″ NPTF
- PSI: 2500
- Push lbs.: 12,272
- Pull lbs.: 9,204
- Recommended operating temperature range: -30 to 105°C (-22 to 221°F)
We carry plenty of hydraulic cylinders and other repair kits, clevis rods, hydraulic parts and pieces.
