Product Overview

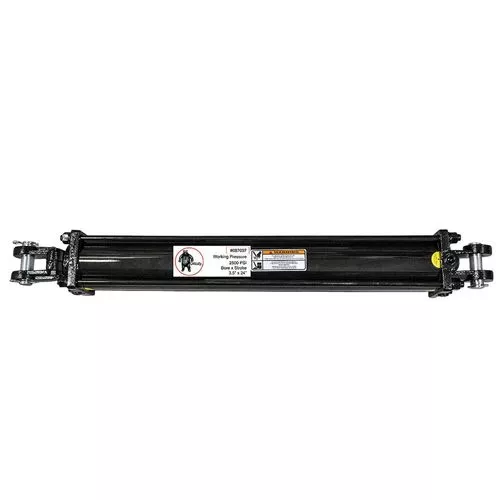

This Grizzly® hydraulic cylinder has a 3-1/2″ inch bore and a 24″ stroke with a retraced length of 34-1/4 inches and an extended length of 58-1/4 inches. Grizzly cylinders are contructed from high strength steel and zinc plated for the tough conditions on the job or farm.
- Specifications:
- Grizzly® Brand
- Bore: 3-1/2″
- Stroke: 24″
- Rod Diameter: 1-1/2″
- Retracted Length: 34-1/4″
- Extended Length: 58-1/4″
- Pin Diameter: 1″
- Port Size: 1/2″ NPTF
- PSI:
- Recommended operating temperature range: -30 to 105°C (-22 to 221°F)
We carry plenty of hydraulic cylinders and other repair kits, clevis rods, hydraulic parts and pieces.
