Product Overview

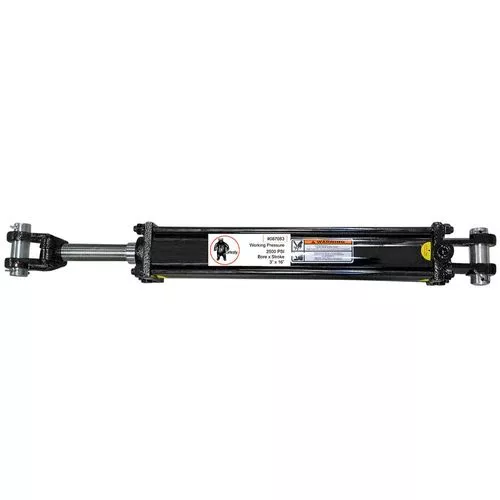

Grizzly® hydraulic cylinders are constructed of high strength steel and include tie rods to prevent high-pressure failure. This cylinder features a 3″ inch bore with a 16″ inch stroke and has a 1″ inch pin.
Specifications:
- Grizzly® Brand
- Model number: T25301612ASAE
- Bore: 3″
- Stroke: 16″
- Rod Diameter: 1-1/2″
- Retracted Length: 31-1/2″
- Extended Length: 47-1/2″
- Pin Diameter: 1″
- Port Size: 1/2″ NPTF
- PSI: 2500
- Push lbs.: 17,671
- Pull lbs.: 13,254
- C95-3016
- Recommended operating temperature range: -30 to 105°C (-22 to 221°F)
We carry plenty of hydraulic cylinders and other repair kits, clevis rods, hydraulic parts and pieces.
