Product Overview

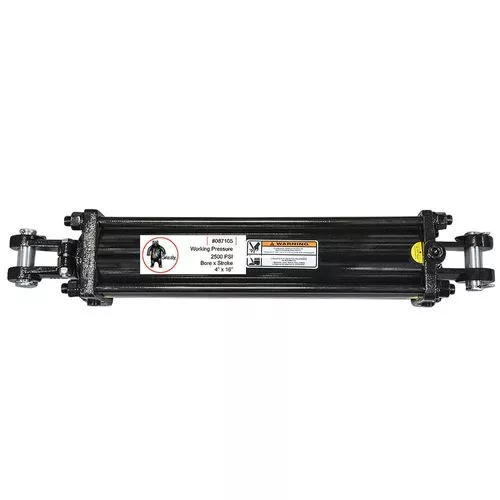

Grizzly® hydraulic cylinders are constructed of high strength steel and include tie rods to prevent high pressure failure. This cylinder features a 4″ inch bore with a 8″ inch stroke and has a 1″ inch pin.
Specifications:
- Grizzly® Brand
- Bore: 4″
- Stroke: 16″
- Rod Diameter: 1-1/2″
- Retracted Length: 26-1/4″
- Extended Length: 42-1/4″
- Pin Diameter: 1″
- Port Size: 1/2″ NPTF
- PSI: 2500
- Recommended operating temperature range: -30 to 105°C (-22 to 221°F)
We carry plenty of hydraulic cylinders and other repair kits, clevis rods, hydraulic parts and pieces.
