Product Overview
With 40 tines, this hay rake tine wheel assembly will help you gather your hay for baling more efficiently. The wheel assembly is constructed of sturdy steel and has a 56 inch working width.
Specifications

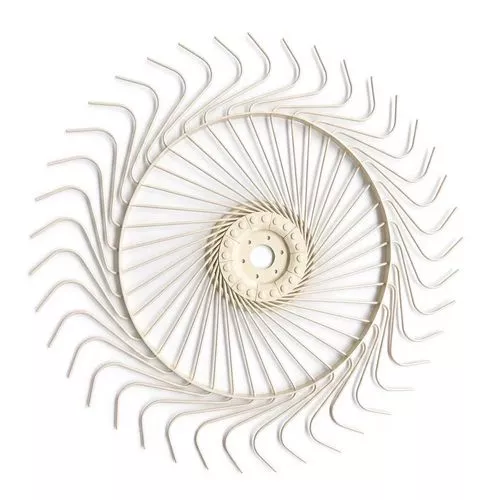

- Hay Rake Tine Wheel Assembly, Left Hand
- Overall diameter: 56 inches across tines
- Diameter of outer rim: 36 inches
- Diameter of center wheel hub: 14-1/2 inch
- Number of tines: 40
- Center hole: 3″
- Tine diameter: 1/4 inch
- Number of rake wheel bolts: six 1/2 inch bolt holes on 5 inch center
- Number of tine bolts: twenty 3/8 inch bolt holes on 9-5/8 inch center
- For a replacement tine, use ASC 59699 replacement hay rake tine
- For a replacement outer bearing, use ASC 17847
- For a replacement inner bearing, use ASC 59682
See ASC 54002 for a right hand hay rake wheel assembly.
