Product Overview

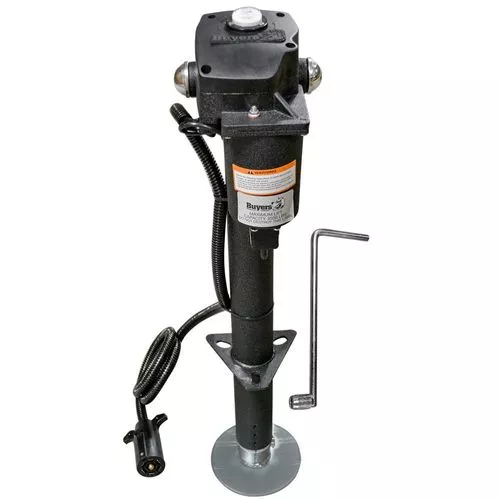

This 12 volt motor driven screw jack is used on travel trailers & boat trailers.
Specifications
- Frame bolt on electric jack
- Rate of travel 15″ p/min
- Retracted length:26-1/2″
- Extended length:39 1/4″
- Lifting capacity: 3500 lbs.
- Fits 2-5/16″ coupler
- Removable foot pad
- Foot pad is 5-1/4″ to prevent divots
- Full stroke: 5,000 lbs. instantaneous tongue break away capacity
- Travel: 18″
- 12 volt DCpowered with manual crank override
- Outer tube: 2.25″
- Inner-tube: 2″
- 48″ long pre-wired (7 pin RV-type) trailer connector power supply for quick, plug-in operation
- Built in leveling gauge
- LED night light
- Quick, 30 second stroke time
- Weather sealed switches
