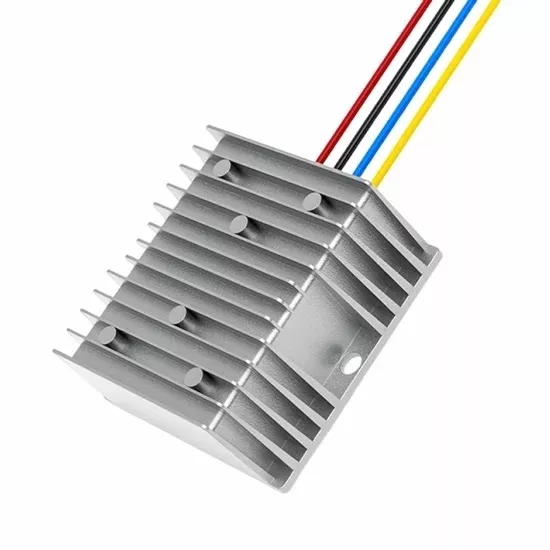

48V to 24V isolated DC-DC converter is a buck converter that uses a synchronous rectification technology and features high efficiency and power density. It provides a rated output voltage of 24V and a maximum output current of 5A.
Isolated DC-DC Buck Converter Specification
| Model | ATO-SY2D120K4824 | |
| Input | Rated voltage | 48V |
| Voltage range | 30-60V | |
| Efficiency | 91% | |
| Output | Voltage | 24V |
| Max. rated current | 5A | |
| Max. rated power | 120W | |
| Static current | 17mA | |
| Switching frequency | 108KHz | |
| Environment | Working temperature | -20 ~ +85℃ |
| Function | Undervoltage protection | YES |
| Short circuit protection | YES | |
| Overcurrent protection | YES | |
| Overtemperature protection | YES | |
| Mechanical | Weight | 270g |
| Size | 74*74*32mm |
Dimensions (Unit: mm)
Tips: Difference between isolated DC-DC converter and non-isolated DC-DC converter
Isolated DC-DC converters prevent DC between input and output by separating the circuit into two parts, electrically and physically, usually by using a transformer. A non-isolated power converter has a single circuit in which current can flow between the input and output.
