Product Overview

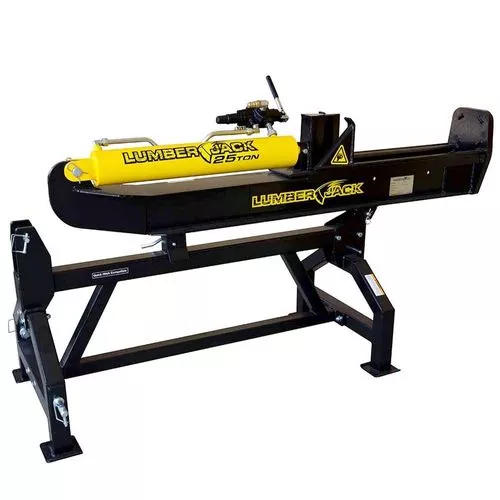

This dynamic 25 ton log splitter can cut a 26 in. piece of wood in a time span of 16 seconds. Attach this 3 point hitch to your tractor for the tractor’s hydraulics as this becomes the power source that operates the tractor log splitter. Overall it is constructed from steel and it measures 7-3/4 in. tall. The cylinder measures 24-1/2 inches long x 4-1/2 inches in diameter, and the height from the ground to the top of the splitter measures 32-1/4 inches. This is a useful machine for preparing firewood for the fall and winter months. Operate with caution. This splitter operates in both vertical & horizontal positions.
Specifications
- Log Splitter LTS25
- 25 ton ram force
- Splits horizontal or vertical positions
- Weight: 370 lbs.
- Cycle time: 16 seconds
- 3 point hitch for tractor
- Quick Hitch Compatible
- Tractor hydraulics power log splitter
- Control valve operation
- Max log length: 26 in.
- Splitter wedge construction: Steel
- Splitter wedge height: 7-3/4 in.
- Cylinder: 24-1/2 in. L x 4-1/2 in. D
- Ground to splitter height: 32-1/4 in.
- To attach to the tractor, purchase qty 2 of 86639 – Hydraulic Coupler Kit and qty 2 of 86676 – 1/2 inch X 96 inches (8 FT) Hydraulic Hose or other length of your choice.
- Distance from the rear of the hydraulic valve to the front of the 3 pt hitch A-Frame is 48 inches.
- See our wide selection of Hydraulic Hoses to help you make a more accurate decision if needed.
