Product OverviewSpecifications
- Made by Eurocardan

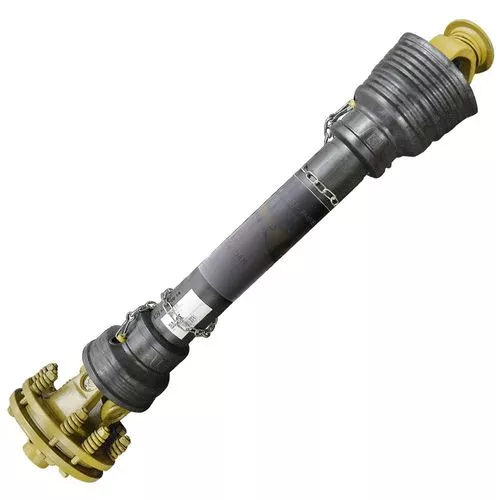

- AX6 series PTO shaft w/ a FD2 series slip clutch
- 1-3/8″ x 6-spline metal pull collar tractor end
- 1-3/8″ x 6-spline implement end
- Closed length: 38.6″
- Safe extended length: 51.7″
- 62 HP at 540 RPM
- 98 HP at 1000 RPM
Slip Clutch Implement End Yoke
| Assembly Description | Series Size | Length Overall | I.E. = Implement EndT.E. = Tractor End |
|---|---|---|---|
| AX6710FD2A-SC | 6 | 38.6″ | FD2 slip clutch 1 3/8-6 interfering bolt I.E. / 1 3/8-6 MC yoke T.E. |
