Product Overview

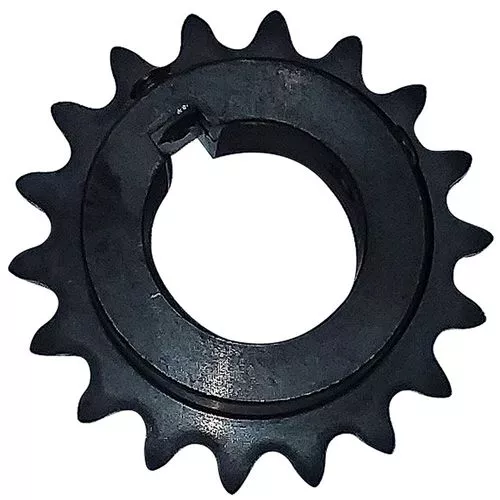

Maintain chain driven machinery with the help of a new roller sprocket. This steel constructed sprocket wheel has 18 teeth and may use a size 35 roller chain. The sprocket wheel has an outside diameter of 2-13/14 in., with a central round bore running through the sprocket wheel. The bore measures 1 in. W and 3/4 in. L. For an easy installation, there are 2 screw holes with 1 located over Kw and the other at 90 degrees, with a set screw size of 1/4- 20 x 1/4. There are a variety of other sized chain sprockets available.
Specifications
- Sprocket
- Construction: Steel
- Induction hardened teeth: 18
- Round bore
- Keyway: 1/4 in., x 1/8 in.,
- Bore: 1 in.,
- Bore length: 3/4 in.,
- Outside diameter: 2-13/40 in.,
- Chain size: 35
- Screw location: 2 holes, 1 over Kw, 1 at 90 degrees
- Set screw size: 1/4- 20 x 1/4
