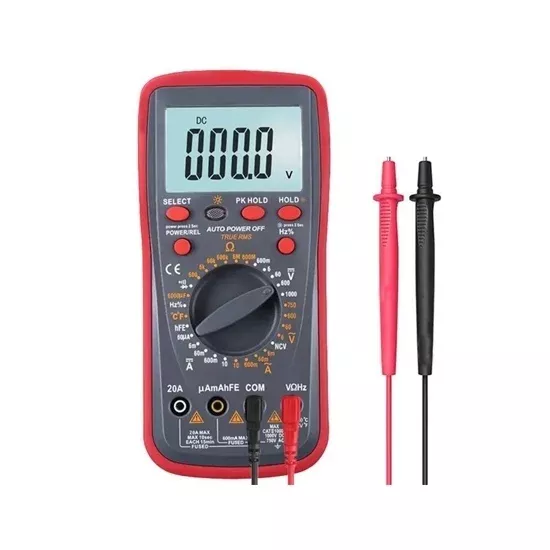

1000V smart digital multimeter for sale online. It is a versatile tool designed for voltage/resistance/capacitance/resistance measurement. 5999 max display, manual range, diode testing, triode testing, NCV test, and multi-functions are available. High accuracy 20 amp true RMS multimeter is suitable in electronics, electrical engineering, electrical repair and so on.
Specifications
| Model | ATO-MLT-UA78A+ |
| Maximum Display Value | 5999 |
| Operation Mode | Manual Range |
| Input Impedance | 10MΩ |
| Battery Type | 9V Battery (6F22) |
| Dimension | 200x94x57mm |
| Weight | About 690g |
| DC voltage | 600mV/6V/60V/600V/1000V |
| AC Voltage | 6V/60V/600V/750V |
| DC Current | 60μA/60mA/600mA/20A |
| AC Current | 60mA/600mA/20A |
| Resistance | 600Ω/6KΩ/60kΩ/600kΩ/60MΩ/600MΩ |
| Capacitance | 0~100mF |
| Temperature | 0°C~1000°C |
| Frequency | 0~10MHz |
Functions
| NCV Test | √ | Auto Power Off | √ |
| Diode Testing/Triode Testing | √ | Function Protection | √ |
| On-off Buzzer | 600Ω | Shake-Proof Protection | √ |
| Data Hold/TRMS/NCV | √ | Backlight | √ |
| Low Battery Display | √ | Self Recovered Safety | √ |
Dimension (Unit: mm)
Details
Applications
Tips: What is a smart multimeter?
A smart multimeter, also known as a digital multimeter or DMM, is an electronic measuring device that combines multiple functions, such as measuring voltage, current, and resistance, into one compact unit. It is called “smart” because it often has additional features and functions that go beyond what traditional analog multimeters can offer, such as the ability to measure continuity, frequency, and temperature, display readings on a digital screen, and even connect to a computer or smartphone for data logging and analysis. Some smart multimeters may also have advanced safety features, such as automatic shutdown or alerts in the case of over-voltage or over-current.
