Product Overview

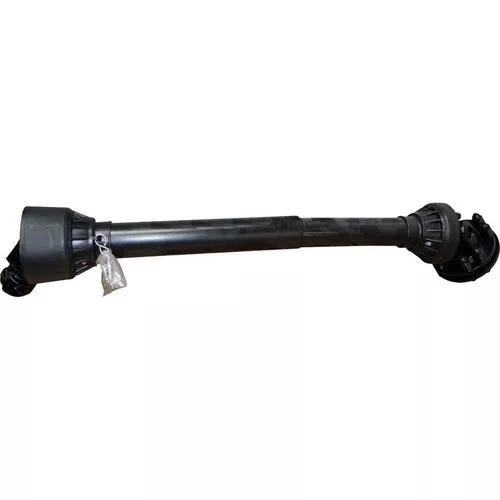

Connected to the transmission, this tiller PTO shaft transfers energy by operating in a rotational motion. It has a PTO horsepower of 35 at 540 RPMs. With dual 5 series yokes, they each have a female end measuring 1-3/8 inches, with 6 splines. The slip clutch measuring 1-3/8 inches, with 6 splines. The clutch is made to slip when the torque is too great for the implement. It also slips to protect the gear box on the implement if a foreign object were to cause damage. As an important safety precaution, be sure to shield any rotating parts and do not wear loose accessories that could become entangled.
Specifications
- PTO Shaft Assembly
- Series 4
- Overall length: 34 in.
- Dual yokes: 1-3/8 in. 6 spline female end, series 4
- Slip clutch: 8 spring bolt assembly, 1-3/8 in. 6 spline end
- 35 HP at 540 RPM
- 54 HP at 1,000 RPMs
- Series 4 cross kit compatibility: 27 mm diameter x 74.6 mm width
- For rotary tillers
- Shield all rotating parts for safety
- Extended Length: 45″
