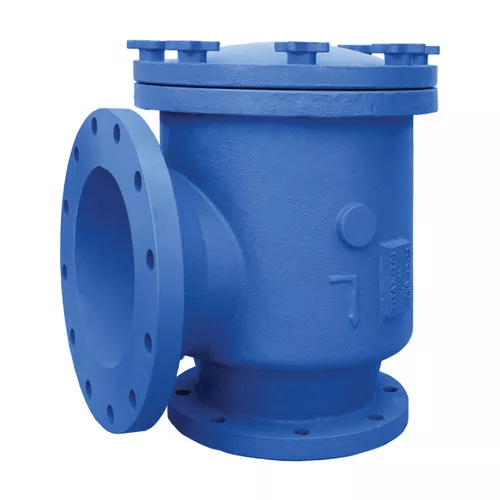

Titan Flow Control SD 22-CI Flanged Cast Iron Suction Diffuser Description
Titan Flow Control’s Suction Diffuser is a pump protection device which provides a means of mechanically removing solids from flowing media by utilizing a perforated or mesh lined straining element (screen). In addition to removing unwanted debris, Titan FCI suction diffusers utilize flow straightening vanes that reduce turbulence and provide a smooth, even flow into the pump. Titan FCI Suction Diffusers are designed to be economical and efficient and can be used to replace the 90° elbow, strainer, and flow stabilizer traditionally installed on the suction side of the pump.
Note: Size refers to Inlet/Outlet. When the Inlet/Outlet sizes are not the same (ex. 2-1/2 in. x 2 in.), the larger size will always be the inlet connection.
