Product Overview

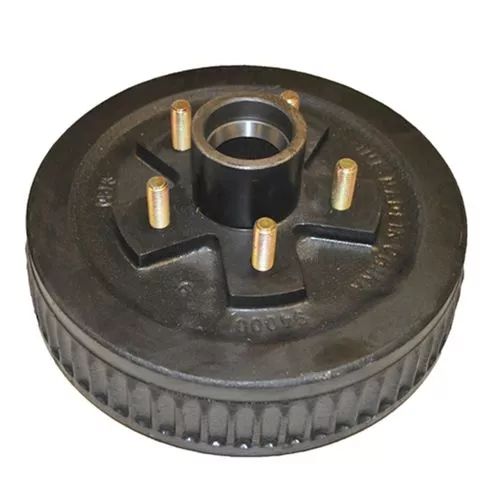

Replace worn trailer hub and drum assemblies with this complete replacement kit. This trailer hub with an integrated drum is a 10 inch standard drum and has a bolt pattern of 5 on 4-1/2 in.
The hub and drum comes with the bearing races already installed. The kit also includes inner and outer bearings, seal, 5 lug bolts and a dust cap. This hub assembly is designed to fit 3500-lb. trailer axles.
Specifications
- TowRight®
- Trailer hub and drum assembly, 10 in.
- Hub and drum assembly includes races, bearings, seals, dust cap and lug nuts
- Fits a 3500-lb. trailer axle
- Capacity: 1,750 lb.
- Drum dimensions: 10 in x 3 in.
- Bolt pattern: 5 on 4-1/2 in.
- Inner bearing: 1-3/8 in.
- Outer bearing: 1-1/16 in.
- This standard 10 in hub and drum assembly comes ready to install
- For brake assemblies use ASC28088A RH Brake Assembly or ASC 28089A LH Brake Assembly whichever is appropriate for your need.
- For Buddy Bearing, use ASC 24126
- For Dust Cap, use ASC 40549 or ASC 25682
- For Spindle use ASC 25685
- For Seal use ASC 25687
- For Inner Bearing use ASC 17943
- For Inner Race use ASC 17942
- For Outer Race use ASC 17933
- For Outer Bearing use ASC 17932
- For replacement wheel stud, use ASC 31235
- For replacement wheel nut, use ASC 17261
