Product Overview

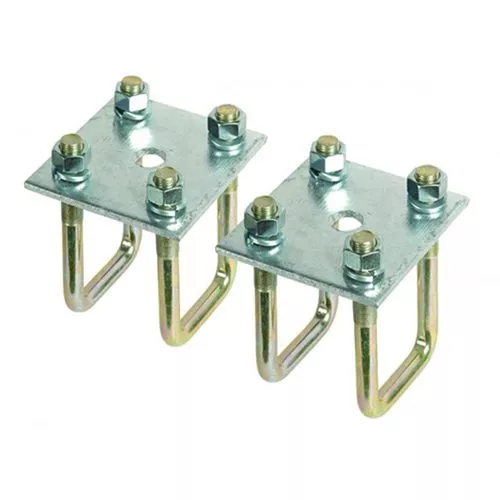

Secure this U-bolt kit to axle underneath trailers or vehicles that need a leaf spring attachment. This kit contains a variety of parts needed to fasten the leaf spring. There are two galvanized tie plates, four U-bolts, and eight nuts with lock washers. The tie plates are square with four holes, one near each corner. The end of each U-bolt is inserted through the holes and secured by a nut and lock washer. These trailer U-bolts and hardware parts are all zinc plated. This kit fits over axles that measure up to 2 inches in diameter.
Specifications
- TowRight®
- U-Bolt Kit
- 2 Galvanized tie plates
- 4 U-bolts, zinc plated
- Bolt length: 4-1/2 in.
- Bolt diameter: 1/2 in.
- 8 lock nuts and lock washers, zinc plated
- Fits a 2 in. square axle
- For replacement U Bolt, use 36850
- For mounting leaf springs to axle
